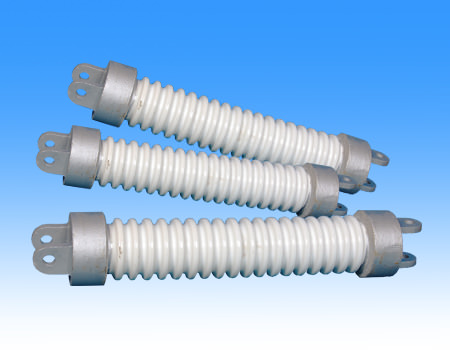

側部振打瓷轉軸圖
電除塵器設備配套絕緣子，以95%氧化鋁為主要原料，經1700℃高溫?zé)�，具有機械強度高、介電強度高、耐酸堿、耐高溫的優點。主要適應于電力、冶金、化工、有色金屬等行業的側部振打靜電除塵器。
The electric dusters are made from 95AI2O3 ceramic formulas as the main raw materials, molded in advanced cold isostatistically press technology, sintered at more than 1700℃ in high temperature tunnel kiln. They have the excellence of high mechanical strength, good thermal conduction, abrasion resistance, acid and alkali proof,high temperature resistant and high dielectric strength ets. They are widely used in static duster equipment for building materials, electric power, metallurgy and chemical industry.
技術條件 Technical conditions
安裝地海拔高度：≤1000米 Installing place's height above sea leavl: ≤1000m
工作溫度：0~350℃ Working temperature: ≤350℃
抗扭轉負荷：≥4000N·m Twisting moment: ≥4000N·m
技術指標 Main technical data
| 產品型式 Version |
產品型號Type |
電瓷產品對應型號
electrical ceramic corresponding model |
傘群數(個)
unbrella fusiform num |

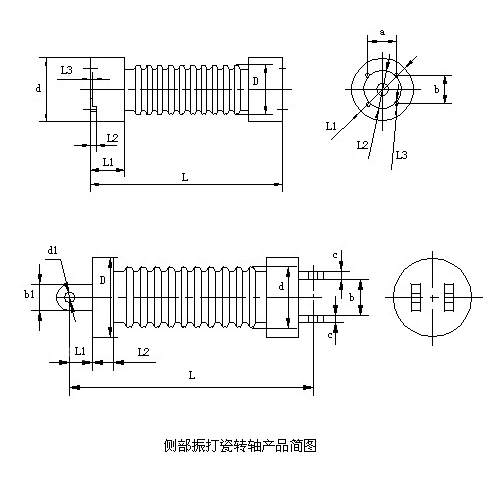

主要尺寸 mm |
| Main dimension |
| L |
D |
L1 |
L2 |
d |
d1 |
d2 |
d3 |
a |
b |
插口式
faucel form |
JS11-460-B |
JN-07203A |
11 |
460 |
Φ102 |
35 |
53 |
Φ120 |
Φ18.5 |
- |
- |
- |
53 |
| JS11-560-B |
|
11 |
560 |
Φ102 |
35 |
53 |
Φ102 |
Φ25 |
- |
- |
- |
32 |
| JS17-630-K |
JN-08001C |
17 |
630 |
Φ105 |
35 |
53 |
Φ120 |
Φ18.5 |
- |
- |
- |
53 |
| JS18-630-B |
JN-08001C |
18 |
630 |
Φ102 |
35 |
53 |
Φ102 |
Φ18.5 |
- |
- |
- |
53 |
| JS18-630-C |
|
18 |
630 |
Φ105 |
35 |
53 |
Φ120 |
Φ18.5 |
- |
- |
- |
20 |
| JS18-630-D |
|
18 |
630 |
Φ125 |
35 |
53 |
Φ120 |
Φ18.5 |
- |
- |
- |
58 |
法蘭式
faucel form |
JF11-390-A |
|
11 |
390 |
Φ80 |
50 |
10 |
Φ120 |
Φ90 |
Φ60 |
4-M10 |
50 |
62 |
| JF11-394-A |
|
11 |
394 |
Φ80 |
50 |
10 |
Φ100 |
Φ80 |
Φ60 |
4-M8 |
50 |
62 |
| JF11-390-B |
JN-07201A |
11 |
390 |
Φ102 |
53 |
10 |
Φ120 |
Φ88 |
Φ56 |
4-M10 |
58 |
67 |
| JF11-394-B1 |
JN-07202A |
11 |
390 |
Φ102 |
53 |
10 |
Φ120 |
Φ90 |
Φ60 |
4-M10 |
50 |
62 |
| JF18-640-E |
|
18 |
640 |
Φ150 |
80 |
14 |
Φ162 |
Φ111 |
Φ60 |
4-M10 |
50 |
62 |
| JF12-460-G |
|
12 |
460 |
Φ86 |
60 |
|
Φ140 |
Φ100 |
Φ60 |
4-M12 |
70.7 |
70.7 |
本公司專業生產優質側部振打瓷轉軸等特種陶瓷產品，歡迎購買側部振打瓷轉軸產品到湖南株洲湘龍新材料有限公司來！
